If any Configuration DNS,IIS and AA Guru is looking–please give me an idea of what I’m missing.

I’m setting up a Hyper-V Test System with 3 components: Domain Server, Main SharePoint and SQL Server and a Web Front-End.

Domain Server (192.168.137.2)

SharePoint/SQL (192.168.137.3)

SharePoint WFE (192.168.137.4)

I’ve configured the Domain, SQL Server, and basic SharePoint. My domain is onisick.com (so orginal)

I’ve gone over my DNS, IIS Web Bindings and Alternate Access Mapping. I still have the problem.

“http://Intranet” works great to get to my Web Front End (192.168.137.4)

however “http://intranet.onisick.com” takes me to IIS Lala land.

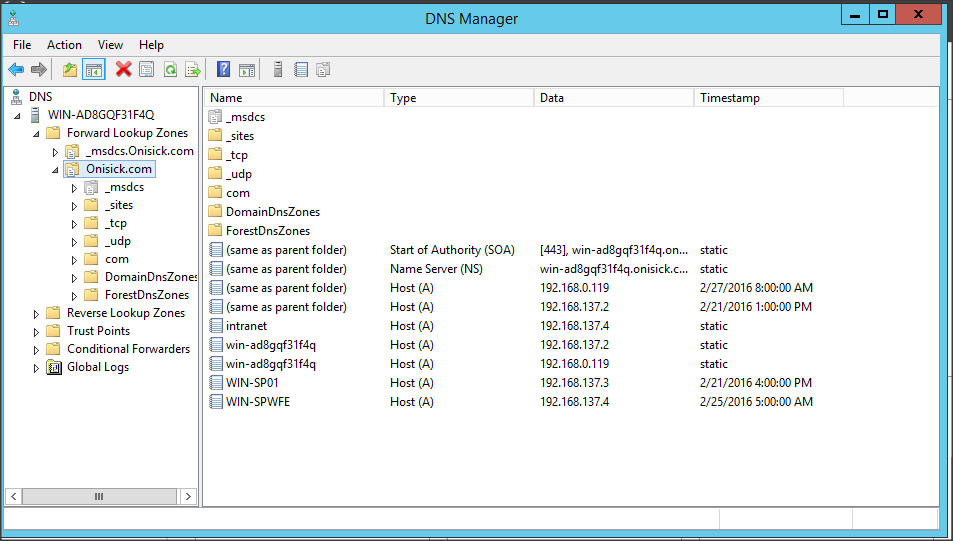

These are my dns records:

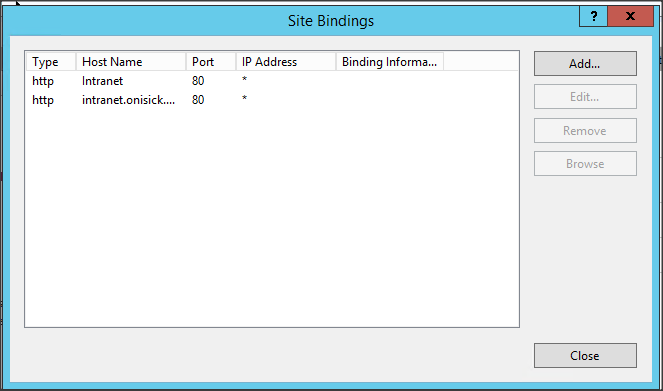

Here are my IIS Bindings on Port 80:

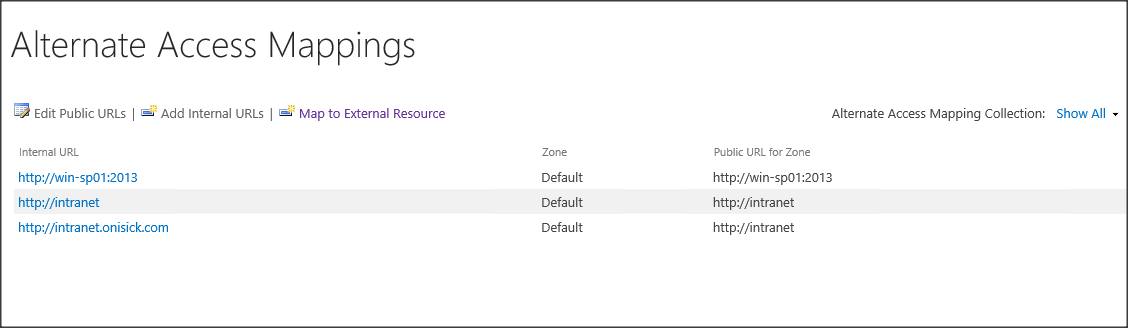

Here are my Alternate Access Mappings  for my Intranet site:

?width=750?width=750
